ROTO-JET PUMP ®
eCatalog of Products
High Pressure Pumps Nothing Could Be Simpler! Navigate this ecatalog with the bookmarks at the left
Excellent Engineering Solutions
© 2003 EnviroTech Pumpsystems, All rights reserved. Documents subject to change without notice.
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model RG 2x2 Pump This compact size Roto-Jet Pump design provides pulsation free pressures up to 1125 PSI in only a single stage. Operation of the Roto-Jet is so unique, nothing could be simpler! Your solution for design flexibility and reduced maintenance.
Model RG 2x2 Pump Hydraulics • The patented Roto-Jet pump has only two basic working parts…a rotating case with a stationary pick-up tube mounted within it. • Performance can be adjusted by changing speed and/or pick-up tube.
Mechanical • Operating temperatures up to 180oF (82oC). • Maximum suction pressure 200 PSI (14 BAR). • Maximum pump speed 4380 RPM. • Grease lubricated bearings.
Operating Range
Advantages • Rugged simplicity…only two working parts. • All internal parts readily accessible, including mechanical seal. • Performance versatility, wide operating range. • Constant long term performance. • Smooth, pulsation-free flow. • Reduced parts inventory.
Sales & Service Experienced sales and applications engineering services together with around the clock service repair from our Service Department.
Your Local Representative
Specifications Maximum Temperature Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
RG 180 F 200 PSI 2600 Ft. 4380 RPM 400 GPM 400 HP 870 lbs. o
82o C 14 BAR 792 m 4380 RPM 91 m3/hr 300 KW 395 kg
Materials of Construction Rotor Rotor Cover Manifold Endbell Pick-up Tube Shaft
Standard Ductile Iron Ductile Iron Ductile Iron Steel 17-4 PH AISI 4140
FB Representaciones Representante en Argentina de Roto Jet 440 W. 800 S. (84101) Tapiales 1165 (B1638BFC), P.O. Box 209 (84110-0209) Salt Lake City, UT Vicente López, Buenos Aires Phone: 801/359-8731, Fax: 801/530-7531 Tel/fax. (54) 011 47977190 Web: www.rotojet.com, E-mail: [email protected] RJ RO-D850 ©1998 EnviroTech Pumpsystems. All rights reserved.
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model RG Pump
Model R11 Pump Capacity Heads Temperatures Maximum Speed
To 150 gpm To 1500 ft. (650 psi) 457 m (45 Bar) to 180o F 4858 RPM
Model RO Pump Capacity Heads Temperatures Maximum Speed
Capacity Heads Temperatures Maximum Speed
To 450 gpm To 2600 ft. (1125 psi) 792 m (78 Bar) to 250o F 4380 RPM
Model D850 Pump To 450 gpm To 5200 ft. (2250 psi) 1585 m (155 Bar) to 400o F 4380 RPM
Capacity Heads Temperatures Maximum Speed
To 750 gpm To 2100 ft. (900 psi) 640 m (62 Bar) to 250o F 4380 RPM
Applications Boiler Feed and Desuperheating Central Cleaning Systems Hydraulic Systems Hydro-Blast Cleaning Reverse Osmosis NOx Supression
Oil Production Mining Petroleum-Chemical Pulp and Paper Mills Water Injection
Semi-Conductor Manufacturing Spraying Systems Steel Mills Transfer Turbine FuelFeed
DESIGN BENEFITS Operation
Seize-Proof
The Roto-Jet is totally, hydraulically stable and can operate with a minimal continuous by flow at shutoff indefinitely and at any flow point throughout the total head curve rang with no wearing or damaging effect to the pump. The reason for this unique benefit is that all radial forces tend to be balanced within the rotor, and axial thrust is solely a function of suction pressure. Radial and axial forces applied to the Roto-Jet are independent of flow rate. Thus, the pump can operate at design point to shut-off free of shaft deflection or added thrust load applied to the bearings
Unlike conventional centrifugal pumps, the Roto-Jet pump will not seize if run dry by a loss of suction or if operated with a minimal continuous by flow against a closed discharge valve. The mechanical seal is not mounted to the pump drive shaft, therefore, seal failure temperature rise is not transferred to the critical drive shaft/bearing area. The Roto-Jet design does not incorporate wear rings or any close shaft tolerances which would be subject to heat expansion and drive shaft seizure.
Design Simplicity
Any given model is capable of higher or lower pressure performance by simply changing the external pump speed and applying the required horsepower. No modification of the pump is required. A wide range of flow capability is achieved by simply changing the pitot tube.
A single stage pump with only two basic working parts; (1) a rotating case and (2) a stationary pitot tube. The pump has only one wearing, rubbing part and that is a mechanical seal that sees only suction pressure. Seal leakage due to seal failure vents to atmosphere. Seal leakage cannot contaminate bearing area due to isolation of the bearing pedestal from the wetted end of the pump. For this reason, the RotoJet can be kept in service with a damaged seal to meet the critical demands of daily production.
Performance Flexibility
Your Local Representative
FB Representaciones
Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), Vicente López, Buenos Aires Tel/fax. (54) 011 47977190 E-mail. [email protected]
440 W. 800 S. (84101) P.O. Box 209 (84110-0209) Salt Lake City, UT Phone: 801/359-8731, Fax: 801/530-7531 Web: www.rotojet.com, E-mail: [email protected] RJ RO-D850 ©1998 EnviroTech Pumpsystems. All rights reserved.
VSR -2100 ™
Variable Speed Roto- Jet
™
Performance NOT Speed Speed KILLS Pumps & Gear Boxes!
Proven Technology Matched To A Product You Trust • No Cooling Water Required • Enhanced Liquid End Accepts Proven Motor Technology • Lower Rotational Speeds Significantly Improve Reliability • Technology in 1000’s of Applications World-Wide • Industry Leading Efficiencies • UL, CE, & CENELEC Approved H
Fixed Speed Pump
Customer Value • Always Right-Sized For The Application • Quantifiable Energy Savings • Accurate Performance • Space Saving Design
Backed By:
Q Roto-Jet® VSR™-2100
H
Q
• Global Service & • Patented High-Efficiency Hydraulics • Needs No Liquid Service • Not Old Geared Technology
• Gear Box • Misalignment • Couplings • Starter
4000
3200
2400 T.D.H. Feet
Eliminates
Roto-Jet® VSR™-2100 - Family Curve
300 200
1600 100
800 0
0
100
200
300
Flow - GPM
Excellent Engineering Solutions
© 2003 Weir Clear Liquid. All Rights Reserved.
400
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model RO D850 Pump This single stage, compact size Roto-Jet Pump provides pulsation free pressures up to 900 PSI with flows to 750 GPM. Operation of the Roto-Jet is so unique, nothing could be simpler!
Model RO D850 Pump Hydraulics • The patented Roto-Jet pump has only two basic working parts…a rotating case with a stationary pick-up tube mounted within it. • Performance can be adjusted by changing speed and/or pick-up tube.
Mechanical • Operating temperatures up to 250o F (121o C). • Maximum suction pressure 200 PSI (14 BAR). • Maximum pump speed 4380 RPM.
Operating Range
Advantages • Relative low speed. • Flexible operating range, low minimum flow. • Performance versatility. • Constant long-term performance. • Smooth, pulsation-free flow. • Seize proof, open clearances. • Low seal chamber pressure (suction pressure). • Oil lubricated bearings isolated from pumped liquid. • Reduced parts inventory. • Low maintenance, easy seal change.
Sales & Service Experienced sales and applications engineering services together with around the clock service repair from our Service Department.
Your Local Representative
FB Representaciones
4x3
Specifications Maximum Temperature (With flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
RO 250 F 550o F 200 PSI 2100 Ft. 4380 RPM 750 GPM 600 HP 1300 lbs. o
121o C 288o C 14 BAR 640 m 4380 RPM 170 m3/hr 450 KW 590 kg
Materials of Construction Rotor* Rotor Cover* Manifold Endbell Pick-up Tube** Shaft
Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel 17-4 PH AISI 4140
St.Steel 316 St.Steel 316 St.Steel 316 St.Steel Carbon Steel 17-4 PH AISI 4140
*Also available in Ductile Iron, CA6NM, CD4MCU and Hastelloy C **Also available in 718 Inconel
Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), 440 W. 800 S. (84101) Vicente López, Buenos Aires P.O. Box 209 (84110-0209) Salt Lake City, UT Tel/fax. (54) 011 47977190 Phone: 801/359-8731, Fax: 801/530-7531 E-mail. [email protected]
Applications • Boiler Feed and Desuperheating • Condensate Return • NOx Suppression Desuperheating
• Central Cleaning Systems • Hydraulic Systems • Hydro-Blast Cleaning • Oil Production • Mining • Petroleum-Chemical
Turbine Fuel Feed
• Pulp and Paper Mills • Reverse Osmosis • Semi-Conductor Manufacturing • Steel Mills • Water Injection • Light Hydrocarbon Service
Reverse Osmosis
HIGH-PRESSURE PUMPS Nothing Could Be Simpler
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model API- R11 This compact size Roto-Jet Pump design provides pulsation free pressures up to 650 PSI in only a single stage. Operation of the Roto-Jet is so unique, nothing could be simpler! Your solution for design flexibility and reduced maintenance.
Model API-R11Pump Hydraulics • The patented Roto-Jet pump has only two basic working parts…a rotating case with a stationary pick-up tube mounted within it. • Performance can be adjusted by changing speed and/or pick-up tube.
Mechanical • Operating temperatures up to 250oF(121oC). • Maximum suction pressure 200 PSI (14 BAR). • Maximum pump speed 4858 RPM. • Oil lubricated bearings.
Operating Range
Advantages • Rugged simplicity…only two working parts. • All internal parts readily accessible, including mechanical seal. • Mechanical seal easily maintained. • Compact design, saves valuable space. • Oil lubricated bearings isolated from the pumped liquid. • Performance versatility, wide operating range. • Constant long term performance. • Smooth, pulsation-free flow. • Reduced parts inventory.
Sales & Service Experienced sales and applications engineering services together with around the clock service repair from our Service Department.
Your Local Representative
Specifications
API-R11
Maximum Temperature (With Flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
180 F 250o F 200 PSI 1500 Ft. 4858 RPM 150 GPM 75 HP 380 lbs. o
82o C 121o C 14 BAR 457 m 4858 RPM 34 m3/hr 55 KW 159 kg
Materials of Construction Rotor Rotor Cover Manifold Endbell Pick-up Tube Shaft
St. Steel 316 St. Steel 316 St. Steel 316 St. Steel Ductile Iron 17-4 PH AISI 4140
FB Representaciones Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), 440 W. 800 S. (84101) Vicente López, Buenos Aires P.O. Box 209 (84110-0209) Salt Lake City, UT Tel/fax. (54) 011 47977190 Phone: 801/359-8731, Fax: 801/530-7531 Web: www.rotojet.com, E-mail: [email protected] RJ R11 ©1998 EnviroTech Pumpsystems. All rights reserved.
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model R11 Pump This compact size Roto-Jet Pump design provides pulsation free pressures up to 650 PSI in only a single stage. Operation of the Roto-Jet is so unique, nothing could be simpler! Your solution for design flexibility and reduced maintenance.
Model R11Pump Hydraulics • The patented Roto-Jet pump has only two basic working parts…a rotating case with a stationary pick-up tube mounted within it. • Performance can be adjusted by changing speed and/or pick-up tube.
Mechanical • Operating temperatures up to 250oF(121oC). • Maximum suction pressure 200 PSI (14 BAR). • Maximum pump speed 4858 RPM. • Oil lubricated bearings.
Operating Range
Advantages • Rugged simplicity…only two working parts. • All internal parts readily accessible, including mechanical seal. • Mechanical seal easily maintained. • Compact design, saves valuable space. • Oil lubricated bearings isolated from the pumped liquid. • Performance versatility, wide operating range. • Constant long term performance. • Smooth, pulsation-free flow. • Reduced parts inventory.
Sales & Service Experienced sales and applications engineering services together with around the clock service repair from our Service Department.
Your Local Representative
Specifications
R11
Maximum Temperature (With Flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
180 F 250o F 200 PSI 1500 Ft. 4858 RPM 150 GPM 75 HP 350 lbs. o
82o C 121o C 14 BAR 457 m 4858 RPM 34 m3/hr 55 KW 159 kg
Materials of Construction Rotor Rotor Cover Manifold Endbell Pick-up Tube Shaft
Standard Ductile Iron Ductile Iron Ductile Iron Ductile Iron 17-4 PH AISI 4140
St. Steel 316 St. Steel 316 St. Steel 316 St. Steel 316 St. Steel 17-4 PH AISI 4140
FB Representaciones Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), 440 W. 800 S. (84101) Vicente López, Buenos Aires P.O. Box 209 (84110-0209) Salt Lake City, UT Tel/fax. (54) 011 47977190 Phone: 801/359-8731, Fax: 801/530-7531 Web: www.rotojet.com, E-mail: [email protected] RJ R11 ©1998 EnviroTech Pumpsystems. All rights reserved.
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model RG 3x2 Pump This compact size Roto-Jet Pump design provides pulsation free pressures up to 1125 PSI in only a single stage. Operation of the Roto-Jet is so unique, nothing could be simpler! Your solution for design flexibility and reduced maintenance.
Model RG Pump Hydraulics • The patented Roto-Jet pump has only two basic working parts…a rotating case with a stationary pick-up tube mounted within it. • Performance can be adjusted by changing speed and/or pick-up tube.
Mechanical • Operating temperatures up to 250o (1210C). • Maximum suction pressure 200 PSI (14 BAR). • Maximum pump speed 4380 RPM. • Grease lubricated bearings.
Operating Range
Advantages • Rugged simplicity…only two working parts. • All internal parts readily accessible, including mechanical seal. • Single and double seals available. • Performance versatility, wide operating range. • Constant long term performance. • Smooth, pulsation-free flow. • Reduced parts inventory.
Sales & Service Experienced sales and applications engineering services together with around the clock service repair from our Service Department.
Your Local Representative
FB Representaciones
Specifications Maximum temperature (With flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
RG 180 F 250o F 200 PSI 2600 Ft. 4380 RPM 400 GPM 400 HP 870 lbs. o
82o C 121o C 14 BAR 792 m 4380 RPM 91 m3/hr 300 KW 395 kg
Materials of Construction Rotor Rotor Cover Manifold Endbell Pick-up Tube Shaft
Standard Ductile Iron Ductile Iron Ductile Iron Steel 17-4 PH AISI 4140
St. Steel 316 St. Steel 316 St. Steel 316 St. Steel Steel 17-4 PH AISI 4140
Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), 440 W. 800 S. (84101) Vicente López, Buenos Aires P.O. Box 209 (84110-0209) Salt Lake City, UT Tel/fax. (54) 011 47977190 Phone: 801/359-8731, Fax: 801/530-7531 E-mail. [email protected] RJ RO-D850 ©1998 EnviroTech Pumpsystems. All rights reserved.
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model RO Pump This compact size Roto-Jet Pump design provides pulsation free pressures up to 2250 PSI in only a single stage. Operation of the Roto-Jet is so unique, nothing could be simpler! Meets API 610 standards.
Model RO Pump Hydraulics • The patented Roto-Jet pump has only two basic working parts…a rotating case with a stationary pick-up tube mounted within it. • Performance can be adjusted by changing speed and/or pick-up tube.
Mechanical
Operating Range
• Operating temperatures up to 550o F (288o C). • Maximum suction pressure 400 PSI (28 BAR). • Maximum pump speed 6321 RPM.
Advantages • Higher efficiencies. • Relative low speed. • Flexible operating range, low minimum flow. • Performance versatility. • Constant long term performance. • Smooth, pulsation-free flow. • Seize proof, open clearances. • Low seal chamber pressure (suction pressure). • Oil lubricated bearings isolated from pumped liquid. • Reduced parts inventory. • Low maintenance, easy seal change.
Sales & Service Experienced sales and applications engineering services together with around the clock service repair from our Service Department.
Your Local Representative
FB Representaciones
Specifications Maximum Temperature (With flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
RO 250 F 550o F 400 PSI 2600 Ft. 4380 RPM 400 GPM 400 HP 1200 lbs. o
High Speed Opt.
121 C 288o C 28 BAR 792 m 4380 RPM 91 m3/hr 300 KW 544 kg o
250o F 550o F 300 PSI 5200 Ft. 6321 RPM 400GPM 400 HP 1200 lbs.
121o C 288o C 21 BAR 1585 m 6321 RPM 91 m3/hr 300 KW 544 kg
Materials of Construction Rotor Rotor Cover Manifold Endbell Pick-up Tube Shaft
Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), Vicente López, Buenos Aires Tel/fax. (54) 011 47977190 E-mail. [email protected]
Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel 17-4 PH AISI 4140
St. Steel 316 St. Steel 316 St. Steel 316 St. Steel Carbon Steel 17-4 PH AISI 4140
Steel CA 6NM CA 6NM Carbon Steel Carbon Steel 17-4 PH AISI 4140
St. Steel CD-4MCu CD-4MCu 316 St. Steel Carbon Steel 17-4 PH AISI 4140
440 W. 800 S. (84101) P.O. Box 209 (84110-0209) Salt Lake City, UT Phone: 801/359-8731, Fax: 801/530-7531 Web: www.rotojet.com, E-mail: [email protected]
Low-Flow, High-Pressure, Single-Stage Pumps Model RD11
High pressure multi-stage performance with the cost advantage, simplicity and reliability of a single stage pump
Benefits of the Roto-Jet RD11 Pump •
Lower Cost
•
Enhanced Reliability
- Lower Installed Cost—compact design eliminates installation issues
- Fewer components to fail—no pump bearings, belts, couplings, or gears
- Efficient Operation—excellent energy saving efficiencies
- Seal designed for low pressure—improves overall seal life
- Low Maintenance Cost—fewer components means less maintenance
- No coupling—eliminates coupling alignment and related failures •
Improved Performance - Broad range of speed, flow, and pressure capability - Hydraulically stable along the entire performance curve and beyond BEP - Adjustable to changing system flow conditions—flexible application
Excellent Engineering Solutions
Typical Roto-Jet RD11 Applications •
Food & beverage cleaning systems
•
Reverse osmosis systems
•
Boiler feed/cleaning systems
•
High pressure paper shower
•
Circuit board wash systems
•
Water/process injection systems
•
Seal flushing systems
•
Desuperheating/condensate return
•
And many, many more…
Specifications Maximum Temperature (With Flush) Maximum Suction Pressure Maximum Head Maximum Speed* Maximum Flow Maximum Horsepower Maximum Weight
English
Metric
180° F 250° F 200 PSI 1500 Ft. 4858 RPM 150 GPM 75 HP 973 lbs.
82° C 121° C 14 BAR 457 m 4858 RPM 34 m3/hr 55 KW 441 kg
Standard Ductile Iron Ductile Iron Ductile Iron Ductile Iron 17-4 PH
St. Steel 316 St. Steel 316 St. Steel 316 St. Steel 316 St. Steel 17-4 PH
Materials of Construction Rotor Rotor Cover Manifold Endbell Pickup Tube *With VFD operation
6000
5000 ROH
Head--Feet
4000 2200 3000 2100 2000 D-850
1000
R11/RD11
0 0
50
100
500
1000
NOTE: Dimensions are for general reference only and will vary with actual model selected. Available with flanged connections.
Flow--GPM
FB Representaciones Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), Vicente López, Buenos Aires Tel/fax. (54) 011 47977190 E-mail. [email protected] © 2003 Weir Specialty Pumps. All Rights reserved. Bulletin DR11
Excellent Engineering Solutions
Low-Flow, High-Pressure, Single-Stage Pumps Model 2100 Pump—Grease Lubricated
High pressure multi-stage performance with the cost advantage, simplicity and reliability of a single-stage pump
Benefits of the Roto-Jet 2100 Pump •
Improved Design
•
- Lower Energy Cost—Higher efficiencies using improved patented hydraulics
Enhanced Reliability - Fewer parts—Pick-Up Tube Locknut design - Seal designed for low pressure—improves overall seal life
- Flexible Installation—Footprint interchangeable with Roto-Jet models RG and 2200
- Isolated bearing pedestal— minimizes risk of bearing contamination
- Low Maintenance Cost—Simplified design means less maintenance •
Improved Performance - Broad range of speed, flow, and pressure capabilities - Hydraulically stable along the entire performance curve and beyond BEP - Enhanced hydraulics over previous designs
Excellent Engineering Solutions
Note: 2x2 and 3x2, NPT and 3x2 flanged manifolds are all available in ductile iron and 316 Stainless Steel.
Typical Roto-Jet Model 2100 Applications •
Food and Beverage cleaning systems
•
Reverse osmosis systems
•
Automotive gun drilling coolant
•
Spraying/washing systems
•
High pressure paper shower
•
Circuit board wash systems
•
Water/process injection systems
•
Seal flushing systems
•
Boiler feed/cleaning systems
•
And many, many more…
Rotor Rotor Cover Manifold Endbell Pickup Tube Shaft
10
20
100
St. Steel 316 St. Steel 316 St. Steel 316 St. Steel Ductile Iron 17-4 PH AISI 4140
Ductile Iron Ductile Iron Ductile Iron Ductile Iron Ductile Iron 17-4 PH AISI 4140
36 1/2" 92.7 cm
3
0
2100 180° F 82° C 250° F 121° C 200 PSI 14 BAR 3000 Ft. 911 m 4709 RPM 4709 RPM 465 GPM 105 m3/hr 400 HP 290 KW 825 lbs. 544 kg grease grease
Materials of Construction
Flow--M /HR 6000
Specifications Maximum Temperature (With Flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight Lubrication
200 1800
5000
22 7/8" 58.1 cm
1500
4000
1200 2200
3000
900
Head--Meters
Head--Feet
ROH
2100
2000
12" 30.5 cm 18 1/8" 46.0 cm
600 D-850
1000
300
R11/RD11
0 0
50
100
500
17 3/4" 45.1 cm
NOTE: Dimensions are for general reference only and will vary with actual model selected. Available with flanged connections.
0 1000
Flow--GPM
FB Representaciones Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), Vicente López, Buenos Aires Tel/fax. (54) 011 47977190 E-mail. [email protected] © 2003 Weir Specialty Pumps. All Rights reserved. Bulletin RJ-2100
Excellent Engineering Solutions
Low-Flow, High-Pressure, Single-Stage Pumps Model 2200 Pump—Oil Lubricated
High pressure multi-stage performance with the cost advantage, simplicity, and reliability of a single-stage pump.
Benefits of the Roto-Jet 2200 Pump •
Improved Design
•
- Lower Energy Cost—Higher efficiencies using improved patented hydraulics
Enhanced Reliability - Fewer parts—Pick Up Tube Locknut design - Seal designed for low pressure—improves overall seal life
- Flexible Installation—Footprint interchangeable with Roto-Jet models RG and 2100
- Isolated bearing pedestal— minimizes risk of bearing contamination
- Low Maintenance Cost—Simplified design means less maintenance •
Improved Performance - Broad range of speed, flow, and pressure capability - Hydraulically stable along the entire performance curve and beyond BEP - Enhanced hydraulics over previous designs
Excellent Engineering Solutions
Typical Roto-Jet Model 2200 Applications •
Food and Beverage cleaning systems
•
Reverse osmosis systems
•
NOX Suppression
•
Spraying/washing systems
Specifications Maximum Temperature (With Flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
•
High pressure paper shower
Materials of Construction
•
Circuit board wash systems
•
Water/process injection systems
•
Boiler feed/cleaning systems
•
Desuperheating/condensate return
•
And many, many more…
Rotor Rotor Cover Manifold Endbell Pickup Tube Shaft
Model 2200 180° F 82° C 250° F 121° C 200 PSI 14 BAR 4042 Ft. 1232 m 5443 RPM 5443 RPM 535 GPM 121.5 m3/hr 400 HP 290 KW 985 lbs. 544 kg St. Steel 316 St. Steel 316 St. Steel 316 St. Steel Ductile Iron 17-4 PH AISI 4140
Ductile Iron Ductile Iron Ductile Iron Ductile Iron Ductile Iron 17-4 PH AISI 4140
6000
5000 ROH
Head--Feet
4000 2200 3000 2100
2000
D-850
1000
R11/RD11
NOTE: Dimensions are for general reference only and will vary with actual model selected.
0 0
50
100
500
1000
Flow--GPM
FB Representaciones Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), Vicente López, Buenos Aires Tel/fax. (54) 011 47977190 E-mail. [email protected] © 2003 Weir Specialty Pumps. All Rights reserved. Bulletin RJ-2200
Excellent Engineering Solutions
eCatalog of Products
High Pressure Pumps Nothing Could Be Simpler! Navigate this ecatalog with the bookmarks at the left
Excellent Engineering Solutions
© 2003 EnviroTech Pumpsystems, All rights reserved. Documents subject to change without notice.
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model RG 2x2 Pump This compact size Roto-Jet Pump design provides pulsation free pressures up to 1125 PSI in only a single stage. Operation of the Roto-Jet is so unique, nothing could be simpler! Your solution for design flexibility and reduced maintenance.
Model RG 2x2 Pump Hydraulics • The patented Roto-Jet pump has only two basic working parts…a rotating case with a stationary pick-up tube mounted within it. • Performance can be adjusted by changing speed and/or pick-up tube.
Mechanical • Operating temperatures up to 180oF (82oC). • Maximum suction pressure 200 PSI (14 BAR). • Maximum pump speed 4380 RPM. • Grease lubricated bearings.
Operating Range
Advantages • Rugged simplicity…only two working parts. • All internal parts readily accessible, including mechanical seal. • Performance versatility, wide operating range. • Constant long term performance. • Smooth, pulsation-free flow. • Reduced parts inventory.
Sales & Service Experienced sales and applications engineering services together with around the clock service repair from our Service Department.
Your Local Representative
Specifications Maximum Temperature Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
RG 180 F 200 PSI 2600 Ft. 4380 RPM 400 GPM 400 HP 870 lbs. o
82o C 14 BAR 792 m 4380 RPM 91 m3/hr 300 KW 395 kg
Materials of Construction Rotor Rotor Cover Manifold Endbell Pick-up Tube Shaft
Standard Ductile Iron Ductile Iron Ductile Iron Steel 17-4 PH AISI 4140
FB Representaciones Representante en Argentina de Roto Jet 440 W. 800 S. (84101) Tapiales 1165 (B1638BFC), P.O. Box 209 (84110-0209) Salt Lake City, UT Vicente López, Buenos Aires Phone: 801/359-8731, Fax: 801/530-7531 Tel/fax. (54) 011 47977190 Web: www.rotojet.com, E-mail: [email protected] RJ RO-D850 ©1998 EnviroTech Pumpsystems. All rights reserved.
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model RG Pump
Model R11 Pump Capacity Heads Temperatures Maximum Speed
To 150 gpm To 1500 ft. (650 psi) 457 m (45 Bar) to 180o F 4858 RPM
Model RO Pump Capacity Heads Temperatures Maximum Speed
Capacity Heads Temperatures Maximum Speed
To 450 gpm To 2600 ft. (1125 psi) 792 m (78 Bar) to 250o F 4380 RPM
Model D850 Pump To 450 gpm To 5200 ft. (2250 psi) 1585 m (155 Bar) to 400o F 4380 RPM
Capacity Heads Temperatures Maximum Speed
To 750 gpm To 2100 ft. (900 psi) 640 m (62 Bar) to 250o F 4380 RPM
Applications Boiler Feed and Desuperheating Central Cleaning Systems Hydraulic Systems Hydro-Blast Cleaning Reverse Osmosis NOx Supression
Oil Production Mining Petroleum-Chemical Pulp and Paper Mills Water Injection
Semi-Conductor Manufacturing Spraying Systems Steel Mills Transfer Turbine FuelFeed
DESIGN BENEFITS Operation
Seize-Proof
The Roto-Jet is totally, hydraulically stable and can operate with a minimal continuous by flow at shutoff indefinitely and at any flow point throughout the total head curve rang with no wearing or damaging effect to the pump. The reason for this unique benefit is that all radial forces tend to be balanced within the rotor, and axial thrust is solely a function of suction pressure. Radial and axial forces applied to the Roto-Jet are independent of flow rate. Thus, the pump can operate at design point to shut-off free of shaft deflection or added thrust load applied to the bearings
Unlike conventional centrifugal pumps, the Roto-Jet pump will not seize if run dry by a loss of suction or if operated with a minimal continuous by flow against a closed discharge valve. The mechanical seal is not mounted to the pump drive shaft, therefore, seal failure temperature rise is not transferred to the critical drive shaft/bearing area. The Roto-Jet design does not incorporate wear rings or any close shaft tolerances which would be subject to heat expansion and drive shaft seizure.
Design Simplicity
Any given model is capable of higher or lower pressure performance by simply changing the external pump speed and applying the required horsepower. No modification of the pump is required. A wide range of flow capability is achieved by simply changing the pitot tube.
A single stage pump with only two basic working parts; (1) a rotating case and (2) a stationary pitot tube. The pump has only one wearing, rubbing part and that is a mechanical seal that sees only suction pressure. Seal leakage due to seal failure vents to atmosphere. Seal leakage cannot contaminate bearing area due to isolation of the bearing pedestal from the wetted end of the pump. For this reason, the RotoJet can be kept in service with a damaged seal to meet the critical demands of daily production.
Performance Flexibility
Your Local Representative
FB Representaciones
Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), Vicente López, Buenos Aires Tel/fax. (54) 011 47977190 E-mail. [email protected]
440 W. 800 S. (84101) P.O. Box 209 (84110-0209) Salt Lake City, UT Phone: 801/359-8731, Fax: 801/530-7531 Web: www.rotojet.com, E-mail: [email protected] RJ RO-D850 ©1998 EnviroTech Pumpsystems. All rights reserved.
VSR -2100 ™
Variable Speed Roto- Jet
™
Performance NOT Speed Speed KILLS Pumps & Gear Boxes!
Proven Technology Matched To A Product You Trust • No Cooling Water Required • Enhanced Liquid End Accepts Proven Motor Technology • Lower Rotational Speeds Significantly Improve Reliability • Technology in 1000’s of Applications World-Wide • Industry Leading Efficiencies • UL, CE, & CENELEC Approved H
Fixed Speed Pump
Customer Value • Always Right-Sized For The Application • Quantifiable Energy Savings • Accurate Performance • Space Saving Design
Backed By:
Q Roto-Jet® VSR™-2100
H
Q
• Global Service & • Patented High-Efficiency Hydraulics • Needs No Liquid Service • Not Old Geared Technology
• Gear Box • Misalignment • Couplings • Starter
4000
3200
2400 T.D.H. Feet
Eliminates
Roto-Jet® VSR™-2100 - Family Curve
300 200
1600 100
800 0
0
100
200
300
Flow - GPM
Excellent Engineering Solutions
© 2003 Weir Clear Liquid. All Rights Reserved.
400
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model RO D850 Pump This single stage, compact size Roto-Jet Pump provides pulsation free pressures up to 900 PSI with flows to 750 GPM. Operation of the Roto-Jet is so unique, nothing could be simpler!
Model RO D850 Pump Hydraulics • The patented Roto-Jet pump has only two basic working parts…a rotating case with a stationary pick-up tube mounted within it. • Performance can be adjusted by changing speed and/or pick-up tube.
Mechanical • Operating temperatures up to 250o F (121o C). • Maximum suction pressure 200 PSI (14 BAR). • Maximum pump speed 4380 RPM.
Operating Range
Advantages • Relative low speed. • Flexible operating range, low minimum flow. • Performance versatility. • Constant long-term performance. • Smooth, pulsation-free flow. • Seize proof, open clearances. • Low seal chamber pressure (suction pressure). • Oil lubricated bearings isolated from pumped liquid. • Reduced parts inventory. • Low maintenance, easy seal change.
Sales & Service Experienced sales and applications engineering services together with around the clock service repair from our Service Department.
Your Local Representative
FB Representaciones
4x3
Specifications Maximum Temperature (With flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
RO 250 F 550o F 200 PSI 2100 Ft. 4380 RPM 750 GPM 600 HP 1300 lbs. o
121o C 288o C 14 BAR 640 m 4380 RPM 170 m3/hr 450 KW 590 kg
Materials of Construction Rotor* Rotor Cover* Manifold Endbell Pick-up Tube** Shaft
Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel 17-4 PH AISI 4140
St.Steel 316 St.Steel 316 St.Steel 316 St.Steel Carbon Steel 17-4 PH AISI 4140
*Also available in Ductile Iron, CA6NM, CD4MCU and Hastelloy C **Also available in 718 Inconel
Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), 440 W. 800 S. (84101) Vicente López, Buenos Aires P.O. Box 209 (84110-0209) Salt Lake City, UT Tel/fax. (54) 011 47977190 Phone: 801/359-8731, Fax: 801/530-7531 E-mail. [email protected]
Applications • Boiler Feed and Desuperheating • Condensate Return • NOx Suppression Desuperheating
• Central Cleaning Systems • Hydraulic Systems • Hydro-Blast Cleaning • Oil Production • Mining • Petroleum-Chemical
Turbine Fuel Feed
• Pulp and Paper Mills • Reverse Osmosis • Semi-Conductor Manufacturing • Steel Mills • Water Injection • Light Hydrocarbon Service
Reverse Osmosis
HIGH-PRESSURE PUMPS Nothing Could Be Simpler
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model API- R11 This compact size Roto-Jet Pump design provides pulsation free pressures up to 650 PSI in only a single stage. Operation of the Roto-Jet is so unique, nothing could be simpler! Your solution for design flexibility and reduced maintenance.
Model API-R11Pump Hydraulics • The patented Roto-Jet pump has only two basic working parts…a rotating case with a stationary pick-up tube mounted within it. • Performance can be adjusted by changing speed and/or pick-up tube.
Mechanical • Operating temperatures up to 250oF(121oC). • Maximum suction pressure 200 PSI (14 BAR). • Maximum pump speed 4858 RPM. • Oil lubricated bearings.
Operating Range
Advantages • Rugged simplicity…only two working parts. • All internal parts readily accessible, including mechanical seal. • Mechanical seal easily maintained. • Compact design, saves valuable space. • Oil lubricated bearings isolated from the pumped liquid. • Performance versatility, wide operating range. • Constant long term performance. • Smooth, pulsation-free flow. • Reduced parts inventory.
Sales & Service Experienced sales and applications engineering services together with around the clock service repair from our Service Department.
Your Local Representative
Specifications
API-R11
Maximum Temperature (With Flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
180 F 250o F 200 PSI 1500 Ft. 4858 RPM 150 GPM 75 HP 380 lbs. o
82o C 121o C 14 BAR 457 m 4858 RPM 34 m3/hr 55 KW 159 kg
Materials of Construction Rotor Rotor Cover Manifold Endbell Pick-up Tube Shaft
St. Steel 316 St. Steel 316 St. Steel 316 St. Steel Ductile Iron 17-4 PH AISI 4140
FB Representaciones Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), 440 W. 800 S. (84101) Vicente López, Buenos Aires P.O. Box 209 (84110-0209) Salt Lake City, UT Tel/fax. (54) 011 47977190 Phone: 801/359-8731, Fax: 801/530-7531 Web: www.rotojet.com, E-mail: [email protected] RJ R11 ©1998 EnviroTech Pumpsystems. All rights reserved.
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model R11 Pump This compact size Roto-Jet Pump design provides pulsation free pressures up to 650 PSI in only a single stage. Operation of the Roto-Jet is so unique, nothing could be simpler! Your solution for design flexibility and reduced maintenance.
Model R11Pump Hydraulics • The patented Roto-Jet pump has only two basic working parts…a rotating case with a stationary pick-up tube mounted within it. • Performance can be adjusted by changing speed and/or pick-up tube.
Mechanical • Operating temperatures up to 250oF(121oC). • Maximum suction pressure 200 PSI (14 BAR). • Maximum pump speed 4858 RPM. • Oil lubricated bearings.
Operating Range
Advantages • Rugged simplicity…only two working parts. • All internal parts readily accessible, including mechanical seal. • Mechanical seal easily maintained. • Compact design, saves valuable space. • Oil lubricated bearings isolated from the pumped liquid. • Performance versatility, wide operating range. • Constant long term performance. • Smooth, pulsation-free flow. • Reduced parts inventory.
Sales & Service Experienced sales and applications engineering services together with around the clock service repair from our Service Department.
Your Local Representative
Specifications
R11
Maximum Temperature (With Flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
180 F 250o F 200 PSI 1500 Ft. 4858 RPM 150 GPM 75 HP 350 lbs. o
82o C 121o C 14 BAR 457 m 4858 RPM 34 m3/hr 55 KW 159 kg
Materials of Construction Rotor Rotor Cover Manifold Endbell Pick-up Tube Shaft
Standard Ductile Iron Ductile Iron Ductile Iron Ductile Iron 17-4 PH AISI 4140
St. Steel 316 St. Steel 316 St. Steel 316 St. Steel 316 St. Steel 17-4 PH AISI 4140
FB Representaciones Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), 440 W. 800 S. (84101) Vicente López, Buenos Aires P.O. Box 209 (84110-0209) Salt Lake City, UT Tel/fax. (54) 011 47977190 Phone: 801/359-8731, Fax: 801/530-7531 Web: www.rotojet.com, E-mail: [email protected] RJ R11 ©1998 EnviroTech Pumpsystems. All rights reserved.
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model RG 3x2 Pump This compact size Roto-Jet Pump design provides pulsation free pressures up to 1125 PSI in only a single stage. Operation of the Roto-Jet is so unique, nothing could be simpler! Your solution for design flexibility and reduced maintenance.
Model RG Pump Hydraulics • The patented Roto-Jet pump has only two basic working parts…a rotating case with a stationary pick-up tube mounted within it. • Performance can be adjusted by changing speed and/or pick-up tube.
Mechanical • Operating temperatures up to 250o (1210C). • Maximum suction pressure 200 PSI (14 BAR). • Maximum pump speed 4380 RPM. • Grease lubricated bearings.
Operating Range
Advantages • Rugged simplicity…only two working parts. • All internal parts readily accessible, including mechanical seal. • Single and double seals available. • Performance versatility, wide operating range. • Constant long term performance. • Smooth, pulsation-free flow. • Reduced parts inventory.
Sales & Service Experienced sales and applications engineering services together with around the clock service repair from our Service Department.
Your Local Representative
FB Representaciones
Specifications Maximum temperature (With flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
RG 180 F 250o F 200 PSI 2600 Ft. 4380 RPM 400 GPM 400 HP 870 lbs. o
82o C 121o C 14 BAR 792 m 4380 RPM 91 m3/hr 300 KW 395 kg
Materials of Construction Rotor Rotor Cover Manifold Endbell Pick-up Tube Shaft
Standard Ductile Iron Ductile Iron Ductile Iron Steel 17-4 PH AISI 4140
St. Steel 316 St. Steel 316 St. Steel 316 St. Steel Steel 17-4 PH AISI 4140
Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), 440 W. 800 S. (84101) Vicente López, Buenos Aires P.O. Box 209 (84110-0209) Salt Lake City, UT Tel/fax. (54) 011 47977190 Phone: 801/359-8731, Fax: 801/530-7531 E-mail. [email protected] RJ RO-D850 ©1998 EnviroTech Pumpsystems. All rights reserved.
HIGH PRESSURE PUMPS Nothing Could Be Simpler
Model RO Pump This compact size Roto-Jet Pump design provides pulsation free pressures up to 2250 PSI in only a single stage. Operation of the Roto-Jet is so unique, nothing could be simpler! Meets API 610 standards.
Model RO Pump Hydraulics • The patented Roto-Jet pump has only two basic working parts…a rotating case with a stationary pick-up tube mounted within it. • Performance can be adjusted by changing speed and/or pick-up tube.
Mechanical
Operating Range
• Operating temperatures up to 550o F (288o C). • Maximum suction pressure 400 PSI (28 BAR). • Maximum pump speed 6321 RPM.
Advantages • Higher efficiencies. • Relative low speed. • Flexible operating range, low minimum flow. • Performance versatility. • Constant long term performance. • Smooth, pulsation-free flow. • Seize proof, open clearances. • Low seal chamber pressure (suction pressure). • Oil lubricated bearings isolated from pumped liquid. • Reduced parts inventory. • Low maintenance, easy seal change.
Sales & Service Experienced sales and applications engineering services together with around the clock service repair from our Service Department.
Your Local Representative
FB Representaciones
Specifications Maximum Temperature (With flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
RO 250 F 550o F 400 PSI 2600 Ft. 4380 RPM 400 GPM 400 HP 1200 lbs. o
High Speed Opt.
121 C 288o C 28 BAR 792 m 4380 RPM 91 m3/hr 300 KW 544 kg o
250o F 550o F 300 PSI 5200 Ft. 6321 RPM 400GPM 400 HP 1200 lbs.
121o C 288o C 21 BAR 1585 m 6321 RPM 91 m3/hr 300 KW 544 kg
Materials of Construction Rotor Rotor Cover Manifold Endbell Pick-up Tube Shaft
Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), Vicente López, Buenos Aires Tel/fax. (54) 011 47977190 E-mail. [email protected]
Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel 17-4 PH AISI 4140
St. Steel 316 St. Steel 316 St. Steel 316 St. Steel Carbon Steel 17-4 PH AISI 4140
Steel CA 6NM CA 6NM Carbon Steel Carbon Steel 17-4 PH AISI 4140
St. Steel CD-4MCu CD-4MCu 316 St. Steel Carbon Steel 17-4 PH AISI 4140
440 W. 800 S. (84101) P.O. Box 209 (84110-0209) Salt Lake City, UT Phone: 801/359-8731, Fax: 801/530-7531 Web: www.rotojet.com, E-mail: [email protected]
Low-Flow, High-Pressure, Single-Stage Pumps Model RD11
High pressure multi-stage performance with the cost advantage, simplicity and reliability of a single stage pump
Benefits of the Roto-Jet RD11 Pump •
Lower Cost
•
Enhanced Reliability
- Lower Installed Cost—compact design eliminates installation issues
- Fewer components to fail—no pump bearings, belts, couplings, or gears
- Efficient Operation—excellent energy saving efficiencies
- Seal designed for low pressure—improves overall seal life
- Low Maintenance Cost—fewer components means less maintenance
- No coupling—eliminates coupling alignment and related failures •
Improved Performance - Broad range of speed, flow, and pressure capability - Hydraulically stable along the entire performance curve and beyond BEP - Adjustable to changing system flow conditions—flexible application
Excellent Engineering Solutions
Typical Roto-Jet RD11 Applications •
Food & beverage cleaning systems
•
Reverse osmosis systems
•
Boiler feed/cleaning systems
•
High pressure paper shower
•
Circuit board wash systems
•
Water/process injection systems
•
Seal flushing systems
•
Desuperheating/condensate return
•
And many, many more…
Specifications Maximum Temperature (With Flush) Maximum Suction Pressure Maximum Head Maximum Speed* Maximum Flow Maximum Horsepower Maximum Weight
English
Metric
180° F 250° F 200 PSI 1500 Ft. 4858 RPM 150 GPM 75 HP 973 lbs.
82° C 121° C 14 BAR 457 m 4858 RPM 34 m3/hr 55 KW 441 kg
Standard Ductile Iron Ductile Iron Ductile Iron Ductile Iron 17-4 PH
St. Steel 316 St. Steel 316 St. Steel 316 St. Steel 316 St. Steel 17-4 PH
Materials of Construction Rotor Rotor Cover Manifold Endbell Pickup Tube *With VFD operation
6000
5000 ROH
Head--Feet
4000 2200 3000 2100 2000 D-850
1000
R11/RD11
0 0
50
100
500
1000
NOTE: Dimensions are for general reference only and will vary with actual model selected. Available with flanged connections.
Flow--GPM
FB Representaciones Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), Vicente López, Buenos Aires Tel/fax. (54) 011 47977190 E-mail. [email protected] © 2003 Weir Specialty Pumps. All Rights reserved. Bulletin DR11
Excellent Engineering Solutions
Low-Flow, High-Pressure, Single-Stage Pumps Model 2100 Pump—Grease Lubricated
High pressure multi-stage performance with the cost advantage, simplicity and reliability of a single-stage pump
Benefits of the Roto-Jet 2100 Pump •
Improved Design
•
- Lower Energy Cost—Higher efficiencies using improved patented hydraulics
Enhanced Reliability - Fewer parts—Pick-Up Tube Locknut design - Seal designed for low pressure—improves overall seal life
- Flexible Installation—Footprint interchangeable with Roto-Jet models RG and 2200
- Isolated bearing pedestal— minimizes risk of bearing contamination
- Low Maintenance Cost—Simplified design means less maintenance •
Improved Performance - Broad range of speed, flow, and pressure capabilities - Hydraulically stable along the entire performance curve and beyond BEP - Enhanced hydraulics over previous designs
Excellent Engineering Solutions
Note: 2x2 and 3x2, NPT and 3x2 flanged manifolds are all available in ductile iron and 316 Stainless Steel.
Typical Roto-Jet Model 2100 Applications •
Food and Beverage cleaning systems
•
Reverse osmosis systems
•
Automotive gun drilling coolant
•
Spraying/washing systems
•
High pressure paper shower
•
Circuit board wash systems
•
Water/process injection systems
•
Seal flushing systems
•
Boiler feed/cleaning systems
•
And many, many more…
Rotor Rotor Cover Manifold Endbell Pickup Tube Shaft
10
20
100
St. Steel 316 St. Steel 316 St. Steel 316 St. Steel Ductile Iron 17-4 PH AISI 4140
Ductile Iron Ductile Iron Ductile Iron Ductile Iron Ductile Iron 17-4 PH AISI 4140
36 1/2" 92.7 cm
3
0
2100 180° F 82° C 250° F 121° C 200 PSI 14 BAR 3000 Ft. 911 m 4709 RPM 4709 RPM 465 GPM 105 m3/hr 400 HP 290 KW 825 lbs. 544 kg grease grease
Materials of Construction
Flow--M /HR 6000
Specifications Maximum Temperature (With Flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight Lubrication
200 1800
5000
22 7/8" 58.1 cm
1500
4000
1200 2200
3000
900
Head--Meters
Head--Feet
ROH
2100
2000
12" 30.5 cm 18 1/8" 46.0 cm
600 D-850
1000
300
R11/RD11
0 0
50
100
500
17 3/4" 45.1 cm
NOTE: Dimensions are for general reference only and will vary with actual model selected. Available with flanged connections.
0 1000
Flow--GPM
FB Representaciones Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), Vicente López, Buenos Aires Tel/fax. (54) 011 47977190 E-mail. [email protected] © 2003 Weir Specialty Pumps. All Rights reserved. Bulletin RJ-2100
Excellent Engineering Solutions
Low-Flow, High-Pressure, Single-Stage Pumps Model 2200 Pump—Oil Lubricated
High pressure multi-stage performance with the cost advantage, simplicity, and reliability of a single-stage pump.
Benefits of the Roto-Jet 2200 Pump •
Improved Design
•
- Lower Energy Cost—Higher efficiencies using improved patented hydraulics
Enhanced Reliability - Fewer parts—Pick Up Tube Locknut design - Seal designed for low pressure—improves overall seal life
- Flexible Installation—Footprint interchangeable with Roto-Jet models RG and 2100
- Isolated bearing pedestal— minimizes risk of bearing contamination
- Low Maintenance Cost—Simplified design means less maintenance •
Improved Performance - Broad range of speed, flow, and pressure capability - Hydraulically stable along the entire performance curve and beyond BEP - Enhanced hydraulics over previous designs
Excellent Engineering Solutions
Typical Roto-Jet Model 2200 Applications •
Food and Beverage cleaning systems
•
Reverse osmosis systems
•
NOX Suppression
•
Spraying/washing systems
Specifications Maximum Temperature (With Flush) Maximum Suction Pressure Maximum Head Maximum Speed Maximum Flow Maximum Horsepower Weight
•
High pressure paper shower
Materials of Construction
•
Circuit board wash systems
•
Water/process injection systems
•
Boiler feed/cleaning systems
•
Desuperheating/condensate return
•
And many, many more…
Rotor Rotor Cover Manifold Endbell Pickup Tube Shaft
Model 2200 180° F 82° C 250° F 121° C 200 PSI 14 BAR 4042 Ft. 1232 m 5443 RPM 5443 RPM 535 GPM 121.5 m3/hr 400 HP 290 KW 985 lbs. 544 kg St. Steel 316 St. Steel 316 St. Steel 316 St. Steel Ductile Iron 17-4 PH AISI 4140
Ductile Iron Ductile Iron Ductile Iron Ductile Iron Ductile Iron 17-4 PH AISI 4140
6000
5000 ROH
Head--Feet
4000 2200 3000 2100
2000
D-850
1000
R11/RD11
NOTE: Dimensions are for general reference only and will vary with actual model selected.
0 0
50
100
500
1000
Flow--GPM
FB Representaciones Representante en Argentina de Roto Jet Tapiales 1165 (B1638BFC), Vicente López, Buenos Aires Tel/fax. (54) 011 47977190 E-mail. [email protected] © 2003 Weir Specialty Pumps. All Rights reserved. Bulletin RJ-2200
Excellent Engineering Solutions
Related Documents 171j1w
Roto Jet 6r3e3d
December 2019 66
Weir Roto Jet 502q6
March 2023 0
Castillo Roto 232s6e
September 2021 0
Catalogo Roto 572ql
November 2019 128
Jet-lube-jet-lok-ii 695x2r
May 2022 0
Jet Benefits And Jet Privileges 1d6k1g
December 2019 57More Documents from "Hernan Giraut" 3zx1d
Biolene - Esterilizacion Por Oxido De Etileno 3o1k2h
June 2021 0
Roto Jet 6r3e3d
December 2019 66
D-11 Chapter 9 Turb Alignment And S P Clearances 6a2s6o
December 2019 32

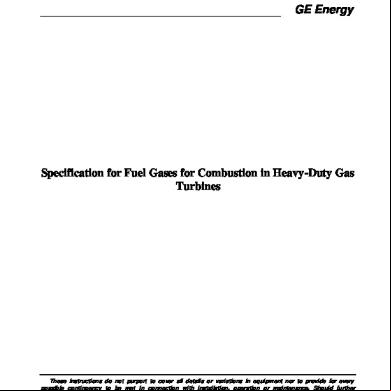

Gei 41040j Gas Fuel Specification_april 2007 4q5m5l
November 2019 29

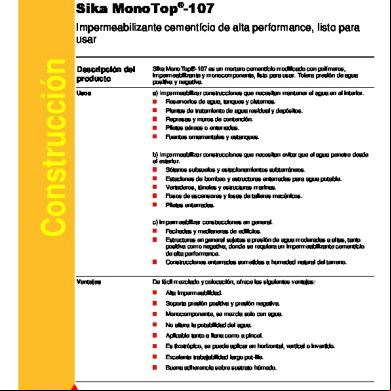

Sika Monotop-107 2s86n
November 2019 64
